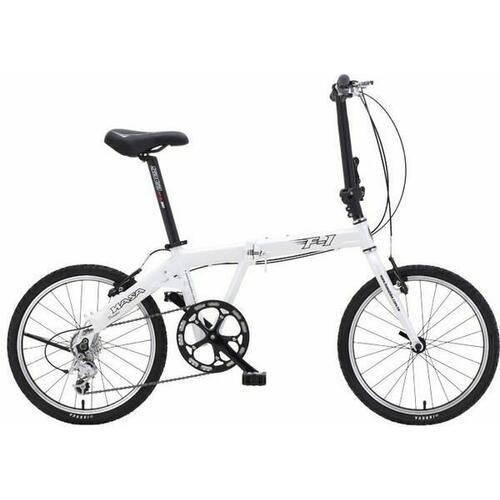

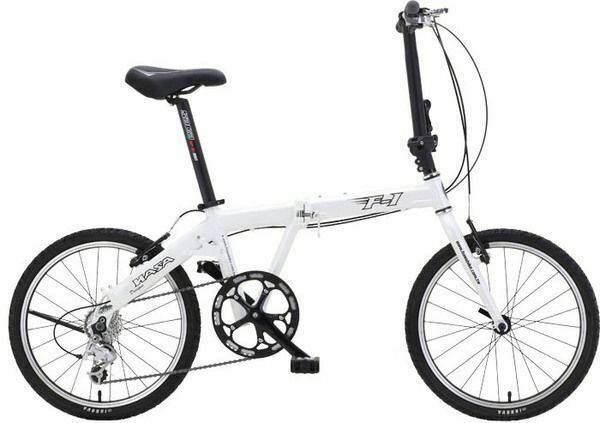

The new HASA F1 9 speed with improved components
-

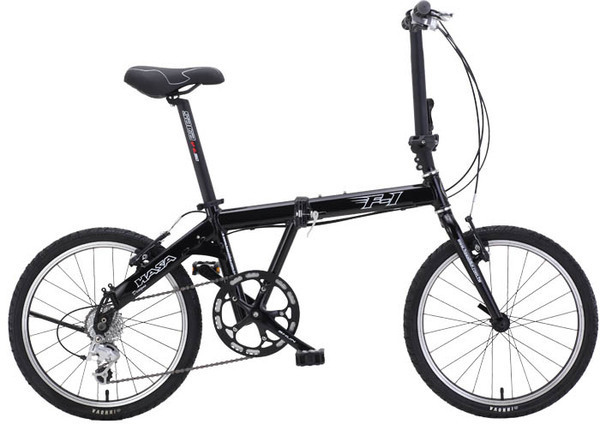

Color: White & Black
-
Size 12" 7005 Aircraft Alloy Aluminium Frame
-
20" Alloy Wheels
-
Shimano 9 Speed Shifter ( better than old model)
-
SHUN Chain Wheel
-
Shimano Sora Derailleur 9 speed (Better than old model)
-
Weight: 11.5kg (25.3 lbs)
-
Folding dimension: 80cm x40cm x 65cm
-
Folding time: 15 sec. Approx.
-
Made in Taiwan (Same quality as major brands)
-
Carry bag could be purhcased at extra cost

|
Model (F-1) |
Factory |
Specfications |
|
Colours |

|
Painted White |
|

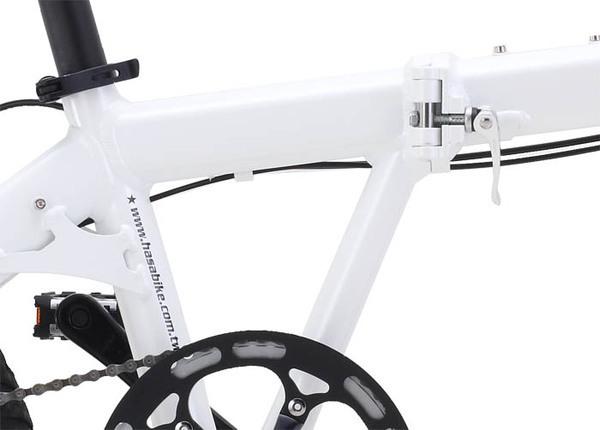

Frame |

|
F1 20" Alloy-7005 (Much better than alloy 6061) |
|
Fork |

|
F1 20" Alloy-7005 |
|

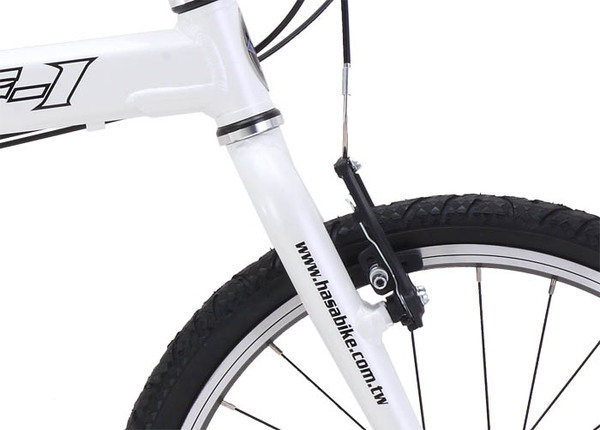

Brake |
Lee Chi |
TX-107-L- F/R Alloy V Leaner Spring Shoe: 60mm DIN |
|
Pipe |
Lee Chi |
Steel 90/110 DEG. |
|

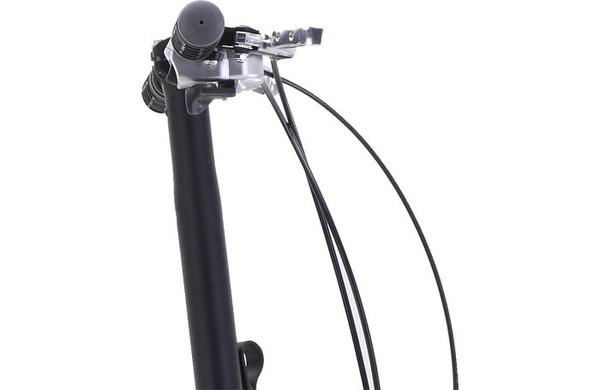

Brake Lever |
Lee Chi |
BL-43G 2 5-Finger Alloy Lever |
|
Brake Cable |
C.C |
2P F/R |
|
G. Cable |
C.C |
SP Rear |
|
HandleBar |
Lujin |
ATB-45 Alloy 540mm wide, bar bore: 25.4mm |
|
Stem |
Lujin |
LJ-FS-07 300mm*25.4 |
|
Grip/Tape |

|
Rubber 125/65 mm. |
|
Head Parts |

|
PT-1755A ST/AL A-Head W/1701 Alloy Black Cap |
|
Spacer |

|
ID28.6, 10mmx 2pcs |
|
B.B. Part |
CH |
CH-51 Cartridge 68-122 |
|

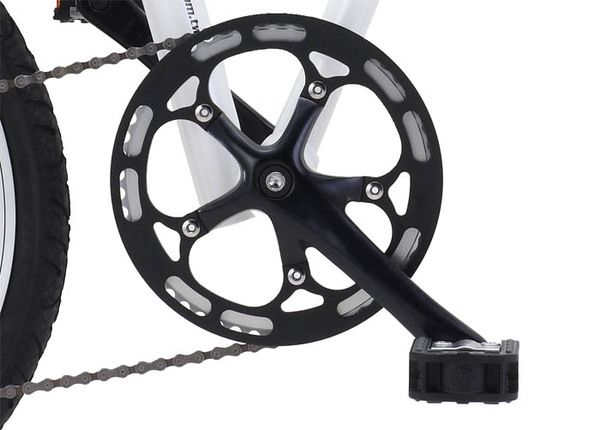

Chain Wheel |
Shun |
SS-8122W Arm Length 165, |
|
C/Cover |
Shun |
Alloy |
|
Chain |

|
Sora HG-53 112L |
|
Front hub |
Formula |
FB-31FQR Alloy, Sealed |
|
Rear Hub |
Formula |
FB32RQR Alloy Sealed |
|
Spokes |
Chun-Nan |
14G Stainless Steel + 12mm Brass cap nipples |
|

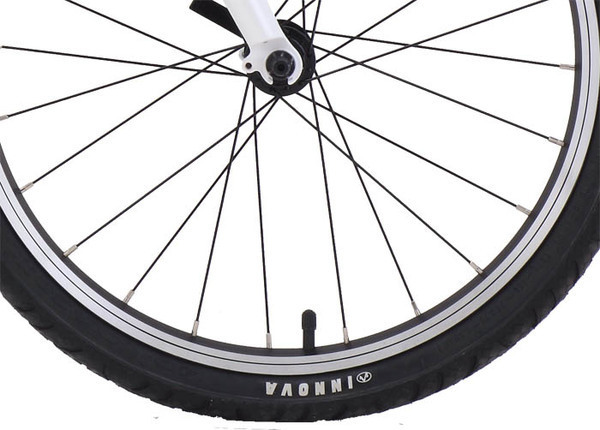

Rim |
Shining |
A-5N 20x14gx24 Holes, Alloy Sngle CNC Wall, A/V |
|
Tire |
Innova |
20"x1.5 LA-3040 |
|
Tube |
Innova |
20" x 1.5 A/V |
|
Rim Tape |
|
20" x 16mm col: yellow |
|

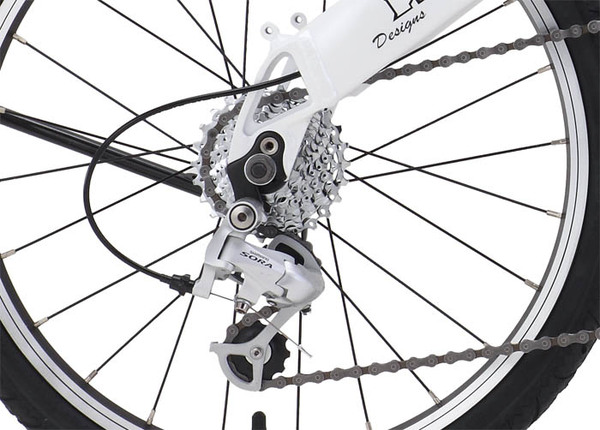

Rear Derailleur |

|
RD: 3400SS 9 speed W/O Brake (SORA) |
|
Shifter |

|
CAPREO: SL-F700 Shifter (RRP: $90) |
|
Freewheel |
Sram |
PG-050 Road cassette 11-26 9 speed |
|
Pedal |
VP |
VP-113 Folding Pedals |
|

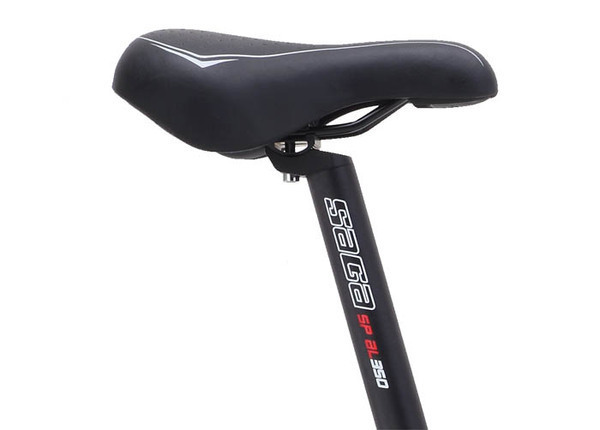

Saddle |
DDK |
DDK-2380 |
|
Seat post |
Lujin |
SP-11 Alloy 34x600mm |
|
S./Pin |
Prime Aero |
CL-97QT Ally ID: 38.6mm |
|
K/Stand |
Y.I |
YRA-2D FIT Hub |
|
Place of Made |
Taiwan |
|
Comments from our customer
We are here to thanks Dave to allow us publish your comments:
Dear Sir I am writing to let you know how happy I am with my HASA F1. I am a bicycle enthusiast and have 6 bikes including road and mountain bikes. I have owned my HASA for about 6 months and purchased it specifically to take on a cycling tour from Vietnam to Cambodia (Which I have just returned from).
The F1 Performed brilliantly I towed a " Bob Ibex" trailer fully loaded with luggage for two people and also fitted a handlebar bag and a seat bag- the bike was fully loaded! A total of 700km's was covered on roads ranging from smooth highways to rocky and dusty tracks. The F1 performed flawlessly and I am looking forward to planning my next tour on it.If I could suggest one improvement to the design it would be to install a drink bottle mount on it- Otherwise the design is brilliant.

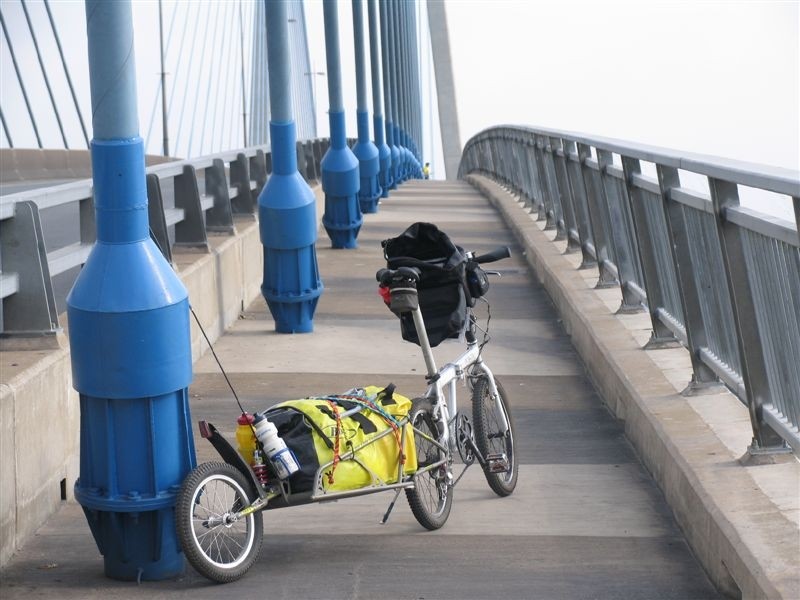

I have attached a few photos from my Trip.
Yours Sincerely
Dave Whyte Victoria

|

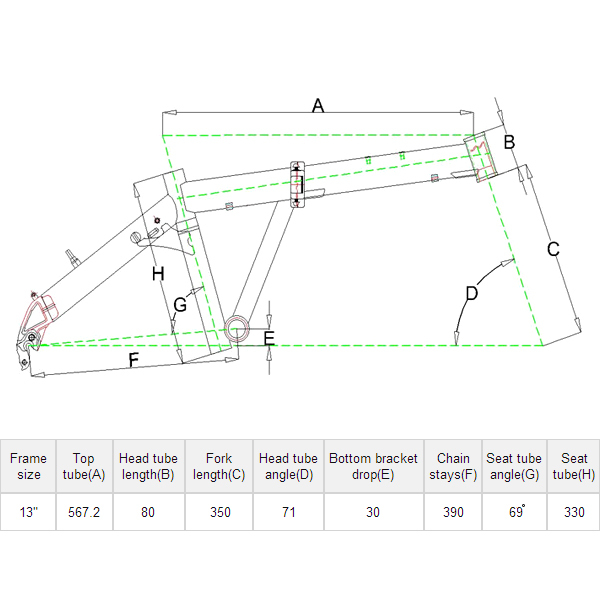

A. Seat Tube |
305mm |
|
B. Virtual Top Tube |
567mm |
|
C. Virtual Chain Stay |
390mm |
|
D. Head Tube Angle |
71° |
|
E. Seat Tube Angle |
69° |
|
F. Wheelbase |
992mm |
|
G. Stand Over Height |
575mm |
Folding dimension: 80cm x40cm x 65cm
(F1)
