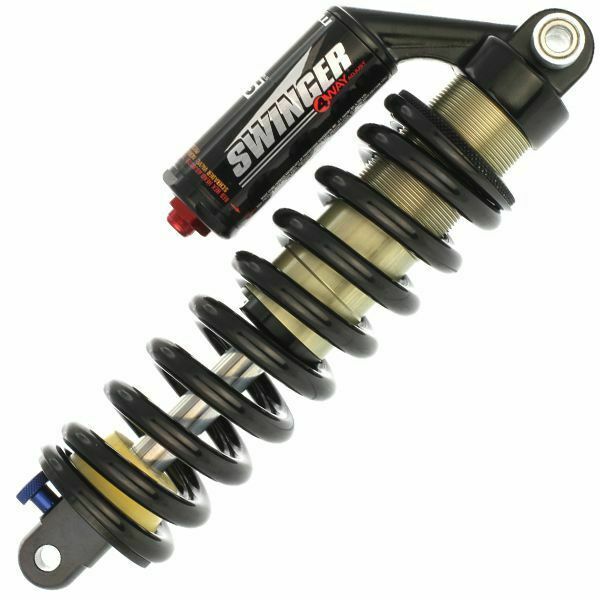

Manitou Swinger 4 Way Coil Bike Rear Shock 450x2.75

New Manitou Swinger 4 Way Coil Shock



No matter what kind of full suspension bike you ride, it will be more efficient, with better bump absorption, when fitted with a Swinger shock. Featuring SPV damping technology the Swinger 4-way allows the rider to set up a pedaling platform threshold, externally, via an air shock. Riders also have the ability to adjust how progressive their shock is with the 16-mm socket adjustment located on the reservoir. Turning the socket in results in a shock with more “ramp up” in the final 50% of its stroke (to prevent bottoming) while turning the socket out results in a more linear spring rate.


Damping: SPV 4-Way

Adjustments: Preload, Rebound, SPV Platform Pressure, SPV Volume

Damper Shaft: Steel

Bushings: Steel/Teflon

Eyelet Hardware: 1-pc S.S.

Package: Inline Reservoir

Length: 8.75"x2.75

Coil: 450 lbsx2.75

Weight: around 1095 g

SPV4-5 STL
