HASA Carbon Mountain Bike Shimano XT 27 Speed

NCMX

Cheapest Carbon Mountain Bike

See all items by: HASA

   Click image(s) below to enlarge or zoom in above.
    •
    •
From AU$999.00
Click here for buying options
Rating: 0 Item not reviewed (write a review...)
Quick Overview
Cheapest Carbon Mountain Bike...
Make an Inquiry


Your Buying Options

  • Shimano XT Rear Deraileur
  • Shimano Deore 27 Speed Shifters
  • Full Carbon Frame RRP$1449. Get a complete bike paying the price of the frame.
  • RockShox TORA Fork (Remote Lock Out)
  • Marvic X317 Wheelset
  • Juicy 3 Hydraulic Disc Brakes
  • 5 Years Warranty on Frame
  • One Year Warranty on Parts
  • Weight: 12.5kg
  • 95% assembled

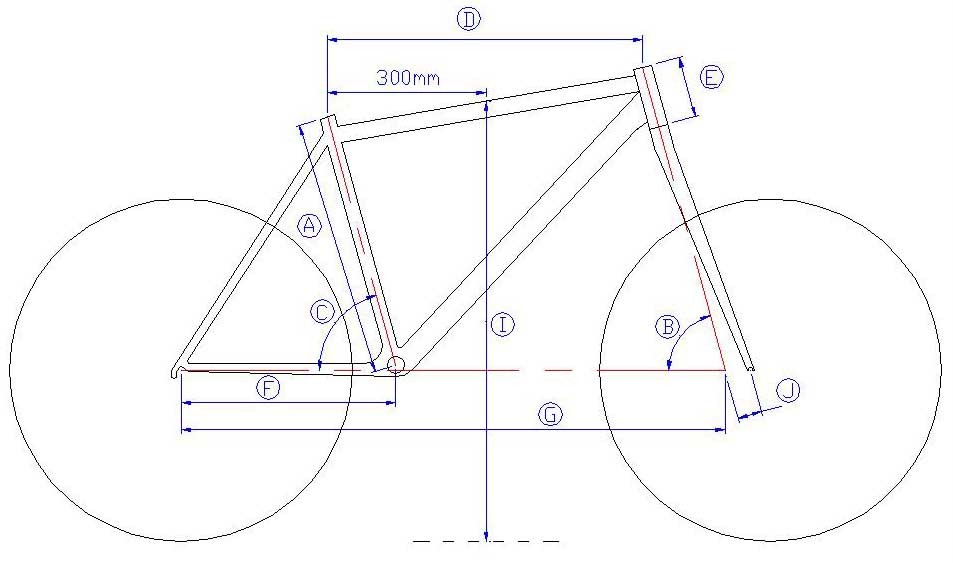

Size D (Top Tube) A (Actual Frame measurement) E (Head Tube) C (Seat Angle) B (Head Angle) G (Wheel Base) F(Rear Centre) I (Stand Over) J (Fork Rake)
mm mm Inch mm degrees degrees mm mm mm mm
19" 552 19" 130 73.5º 70.5º 1055.1 420 751 38
21" 572 21" 130 73.5º 70.5º 1080.1 420 786.4 38



MODEL NO: CM-X (XT)
FRAME HASA CM-X CARBON (2009)

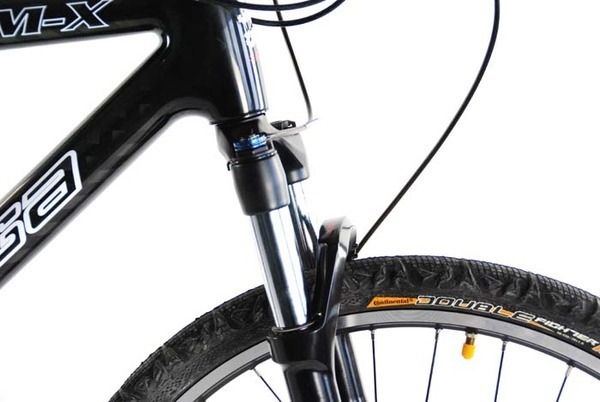

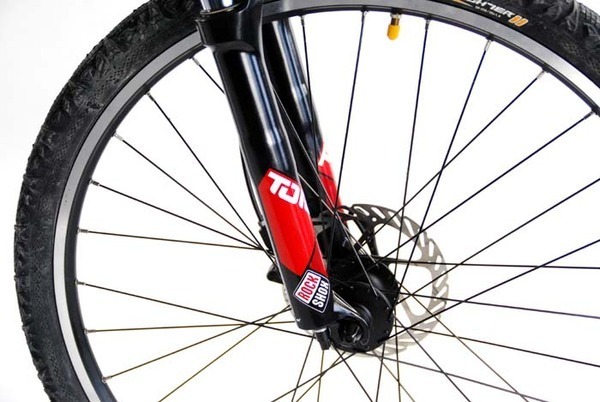

FORK ROCK SHOX 00.4015.285.019 10 FS TORA SL Q CL80 BLACK DSC AL
  ROCK SHOX 11.4309.031.000 PopLoc Fork Left
BRAKE/L AVID 00.5015.081.070 07 DB JUICY 3S L/F 160IS 160G2CS  750
BRAKE/R   00.5015.087.690 07 DB JUICY 3S R/R 160IS 160G2CS  1350
ROTER PROMAX 160mmL-F/R DT-160A
B.CABLE C.C 2P CP-C6 CARBON
G.CABLE C.C SP CP-C5 CARBON
H./BAR LUJIN LJ-ATB-32 ALLOY 600mmWx6DEG B/BORE:31.8mm.LOGO:SAGA IN 2-SIDE
H./STEM LUJIN LJ-ATB-224 ALLOY A-HEAD EXT:16":80mm;17"-19"90mm 20":110mmID:28.6 B/BORE:31.8mm.LOGO:HASA IN 2-SIDE (EXT)
GRIP/TAPE HASAER RUBBER 125mm .
H./PART PRES TINE PT-1806H-HEAD H/PARTS W/1701 ALLOY BK CAP.W/HASA LOGO
SPACER PRESTINE PT-67 ID:28.6 10mmx2PCS
C./WHEEL TRUVATIV 00.6115.009.190 07 FC 5D 3.1 SQ 175 AEGRY 443222
B.B.PART CH CH-51 68-113mm
CHAIN KMC CN-HG73 108L
F./HUB SHIMANO HBM595 ALLOY M9x14Gx32Hx100/108mm
R./HUB SHIMANO FHM595 ALLOY M10x14Gx32Hx135/146mm
SPOKE CHUN-NAN 14G STAINLESS +14mm BRASS CP NIPPLES.
RIM MAVIC XM317 Disc Black 26"*14G*32H  ALLOY D.B  WALL  A/V.
TIRE Continental Double Fighter ll 26*1.9  84tpi
TUBE Continental 26"*1.95" A/V
RIM TAPE RJB 26"x16mm col:yellow
F./D. SHIMANO FD:M591L6 34.9mm  DOWN SWING

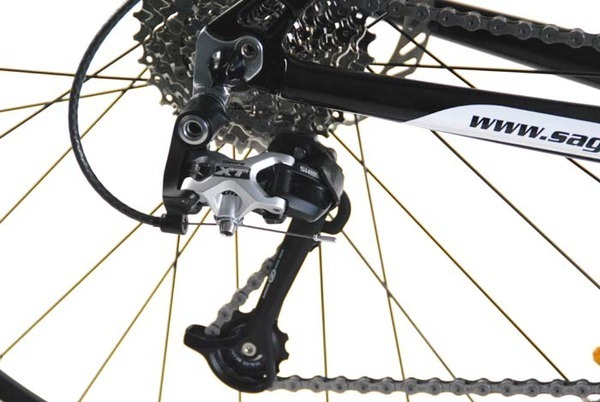

R./D. SHIMANO RD:M771SGS W/O BRACKET  FOR 9SP.
SHIFTER SHIMANO SL-M590 ; 3F/9R
FREEWHEEL SHIMANO CS-HG-50-9; 11-32T
PEDAL WELLGO LU-950 ALLOY BK CAGE & POLISH SILVER BODY AXLE:9/16 CRMO REFL:BS.

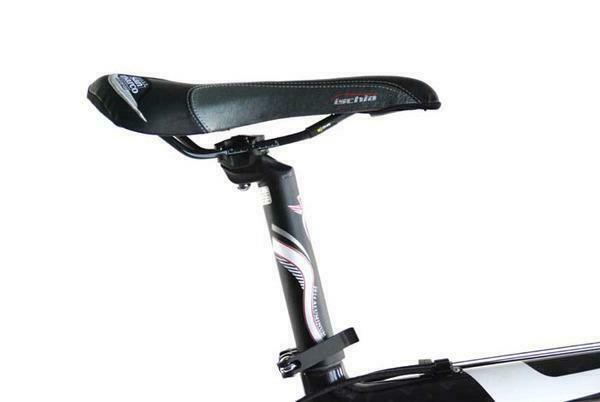

SADDLE SAN MARCO PONZA  A010 M 018
SEATPOST HL SP-220 ALLOY 31.6mmx300mm L.LOGO:HASA 2-SIDE
S./PIN LEE CHI 319Q ALLOY ID:34.9mm

(NCMX)
